Asrock Mini PC Series - VisionX 420D (Haswell)
-0(m).jpg)
Features
Intel® Mobile Haswell Processor
Introducing the world’s first 22nm 3-D transistors from Intel® that ensure lower power consumption, amazing multitasking performance, stunning visuals and built in security to keep you safer.
AMD Radeon™ R9 M270X Graphics
Engineered for supremacy, designed for efficiency and packed with incredible features such as support for BD3D and HD3D technology, the AMD Radeon R9 M270X series offers more than just the world’s most advanced graphics.

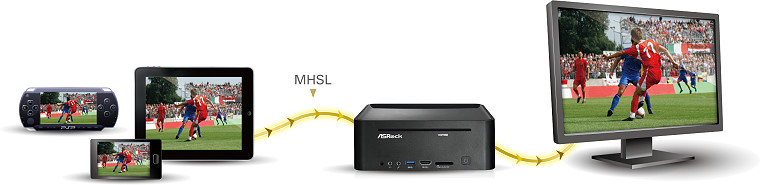

MHSL (Mobile High Speed Link)
MHSL is ASRock’s exclusive HD video and digital audio interface for connecting mobile phones, tablets or other portable devices to your PC and then to a monitor. Not only does it support the MHL standard’s features such as charging while browsing the portable device’s content on another monitor, MHSL also lets users sync data between the mobile device and your PC, plus it supports ASRock’s HDMI-In feature so that other devices that support HDMI output may work through the MHSL port too.
2T2R 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi (5G WiFi) module that supports up to 867Mbps wireless networks and Bluetooth v4.0. Experience up to 289% speed boost compared to your old WiFi!
Bluetooth 4.0
Bluetooth v4.0 standard features Smart Ready technology that adds a whole new class of functionality into mobile devices including Apple's most recent iPhones. BT 4.0 also includes Low Energy technology and ensures extraordinary low power consumption for PCs.
Bitstream
This HTPC supports Bitstream / audio pass through (Dolby® TrueHD and DTS HD Master audio) with the HDMI interface for excellent audio quality that will rock you out of your shoes.
DTS Connect
Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.
DTS, DTS-HD, the
Symbol, & DTS or DTS-HD and the Symbol together are registered
trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
mSATA
The onboard mSATA connector can be used to connect a Solid State Drive (SSD) for internal storage. With an SSD paired with a Hard Disk Drive (HDD), users are able to feel the speed of SSD Caching with Intel® Smart Response Technology.
MCE Remote Controller
Feeling incomplete and powerless without an almighty remote control for your home theater PC? Simply control your system with ASRock’s MCE Remote Controller.
HDMI™ (High-Definition Multimedia Interface)
This product supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
The
specification is subject to change without notice in advance. The brand
and product names are trademarks of their respective companies. Any
configuration other than original product specification is not
guaranteed.
Specifications
| VisionX 420D | |
| CPU | - Intel® Core™ i5 4200M Mobile Haswell Processor - Supports 4th Generation Intel® Core™ i7 / i5 / i3 Mobile Haswell Processor Family |
| OS | - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit compliant |
| Chipset | - Mobile Intel® HM87 Express chipset |
| Memory | - 8GB DDR3-1600MHz (2 x 4GB) - Supports DDR3 1600/1333/1066 MHz, 2 x SO-DIMM slots, Max. up to 16GB*
*Due
to the operating system limitation, the actual memory size may be less
than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| VGA | - AMD Radeon™ R9 M270X Graphics (with 1GB GDDR5 VRAM) - Supports Blu-ray 3D playback, AMD HD3D technology
*AMD has officially renamed AMD Radeon™ HD8850M to AMD Radeon™ R9 M270X.
|
| HDD | - 1TB - Supports second 2.5" SATA HDD |
| mSATA | - Supports mSATA SSD |
| ODD | - DVD Super Multi |
| Front I/O | - 1 x MHSL, 1 x USB 3.0, 1 x MIC, 1 x Headphone, 4-in-1 Card reader (SD3.0/MMC/MS/MS PRO) |
| Rear I/O | - 1 x HDMI, 1 x DVI-I (Dual-Link), 1 x USB 2.0, 1 x S/PDIF, 1 x eSATA, 5 x USB 3.0 |
| LAN | - Gigabit LAN
*Supports Wake-On-LAN
|
| Sound | - 7.1 CH HD Audio, Supports DTS Connect |
| WiFi | - 2T2R 802.11 a/b/g/n/ac
*5GHz/2.4GHz Dual-Band access / Faster Speed: WLAN up to 867Mbps data rate.
|
| Bluetooth | - Bluetooth 4.0 / 3.0 + High Speed Class II |
| Remote Controller | - MCE Remote Controller |
| Power Unit | - 120W/19V Adapter |
| Dimension | - 200mm(W) x 70mm(H) x 200mm(L) |
| Volume (liters) | - 2.8L |
Download Manual
| Description | Language | Download From | |||
| User Manual | English |  Asia |  Europe | USA | China |
| Quick Installation Guide | Multi-Language | Asia | Europe | USA | China |
| RAID Installation Guide | English | Asia | Europe | USA | China |
| RAID Installation Guide | 中文 (T.Chinese) | Asia | Europe | USA | China |
| Intel Rapid Storage Guide | English | Asia | Europe | USA | China |
| Intel Rapid Storage Guide | 中文 (T.Chinese) | Asia | Europe | USA | China |
| Intel Smart Response Installation Guide | English | Asia | Europe | USA | China |
| Intel Smart Response Installation Guide | 中文 (T.Chinese) | Asia | Europe | USA | China |
| Intel Small Business Advantage Installation Guide | English | Asia | Europe | USA | China |
